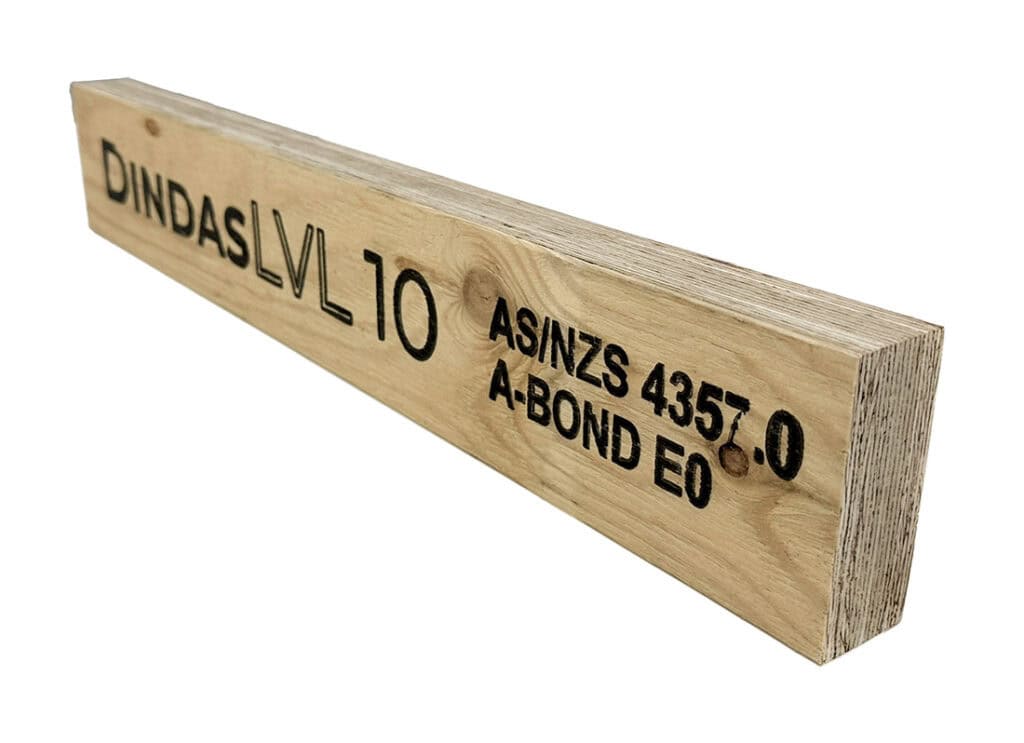

Dindas Australia’s LVL, Dindas LVL 10, is an excellent choice for your framing requirements, such as structural members for lintels, beams, and wall frames. Its solid construction is sturdy and lightweight, ensuring maximum stability, durability, and superior strength over traditional timber, even when compared to higher-grade LVL options.
Cost-Benefit Structural Timber
It has an excellent strength-to-weight ratio, making it perfect for framing without adding extra weight to the building structure. It’s a cost-effective LVL option and ideal for structural framing applications.
Six High Span Option Sizes (6m length packs)
High-Performance Engineered Wood Product
Dimensional Uniform Stability (±1mm)
Sustainable Sourcing
Applications | Internal. Traditional framing components. Dindas LVL 10 is specifically manufactured for load-bearing capacity and uniformity. Note: Dindas LVL 10 should only be used for its intended purpose. |
Maximum Length | Only available in 6m packs |
Depth Options | 70, 90, 240 and 300mm |
Width Options | 35 and 45mm |
Timber Grading | LVL 10 |
Treatments | Available as H2S. H2 & H3 available by request. |
Manufacture / Design | AS/NZS 4357.2 Series of Standards |
Certifications | SECA, BSI |
Depth (mm) | Thickness (mm) | Pieces per Pack | Weight |
---|---|---|---|
70 | 35 | 144 | 1.70 kg/lm |
90 | 35 | 108 | 2.19 kg/lm |
70 | 45 | 112 | 2.19 kg/lm |
90 | 45 | 84 | 2.81 kg/lm |
240 | 45 | 28 | 7.51 kg/lm |
300 | 45 | 28 | 9.38 kg/lm |
